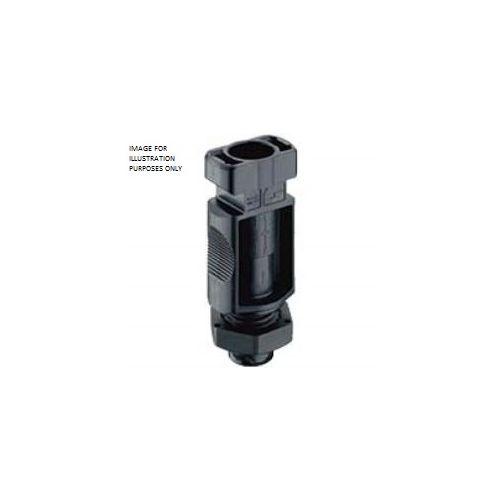

LC4CP101IT4.0(50) | PV Chassis Plug
Photovoltaic chassis plug
| Complete Electronics Part No. | LC4CP101IT4.0(50) |
|---|---|
| Manufacturers Part No. | LC4-CP 10-1 IT 4.0 (50) |
Description
LC4-CP 10-1 IT 4.0 (50)
Photovoltaic chassis plug
- With integrated locking and crimp contact, for front mounting
- Contact resistance ≤ 1 mΩ
- Rated current (IEC) LC4-CP 1... 2.5 22 A at Tamb 85 °C LC4-CP 1... 4.0 and 6.0 30 A at Tamb 85 °C
- Rated current (UL)2 35 A at Tamb 20 °C, all sections
- Rated voltage 1000 V DC (IEC)/600 V DC (UL)
- Overvoltage category III (8 kV)
- Temperature range -40 °C/+85 °C (IEC) -40 °C/+90 °C (UL) (+125 °C upper limit temperature)
