PXM7010/03S/ST/1315/SN | PXM701003SST1315SN | Bulgin 7000 Series

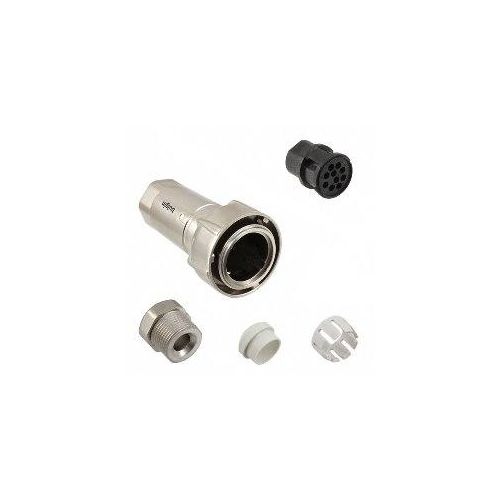

7000 Series Buccaneer Metal 3 Pole Female Flex Cable Connector
More Information
Complete Electronics Part No. PXM701003SST1315SN
Manufacturers Part No. PXM7010/03S/ST/1315/SN
Type: Cable Socket
Mounting: Cable
Number of poles 3
Cable Gland Size: 13-15 mm
Termination: Screw
Male/Female: Female
Housing Construction: Metal
Cable Entry: Straight
Rated Voltage: 600V
Rated Current: 25A
IP Rating: IP66 / 68 / 69K
Description

PXM7010/03S/ST/1315/SN

3 Pole Female Flex Cable Connector

  • Voltage: 600Vac/dc
  • Current: 25 Amps
  • Gender: Female
  • Application: Cable Mount
  • Contacts: Sockets
  • Termination: Screw
  • With Braid Termination Accessory
  • Temperature range -40 °C/+120 °C
  • Mates With Flex Cable Connectors PXM7011 & PXM7012
