PXM7010/32S/CR/0709 | PXM701032SCR0709 | Bulgin 7000 Series

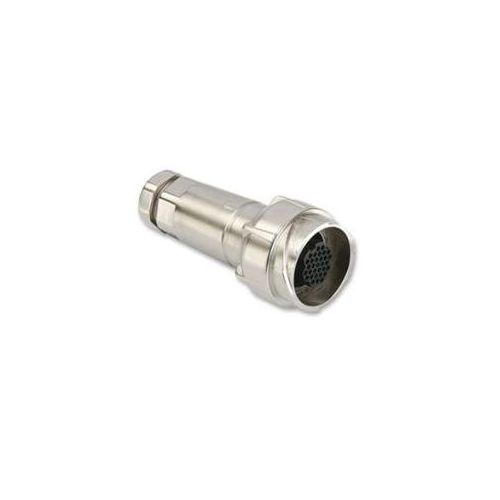

7000 Series Buccaneer Metal 32 Pole Female Flex Cable Connector
More Information
Complete Electronics Part No. PXM701032SCR0709
Manufacturers Part No. PXM7010/32S/CR/0709
Type: Cable Socket
Mounting: Cable
Number of poles 32
Cable Gland Size: 7.0-9.0 mm
Termination: Crimp
Male/Female: Female
Housing Construction: Metal
Cable Entry: Straight
Rated Voltage: 600V
Rated Current: 3A
IP Rating: IP66 / 68 / 69K
Description

PXM7010/32S/CR/0709

32 Pole Female Flex Cable Connector

  • Voltage: 600Vac/dc
  • Current: 3 Amps
  • Gender: Female
  • Application: Cable Mount
  • Contacts: Sockets
  • Termination: Crimp, excluded, order separately
  • Temperature range -40 °C/+120 °C

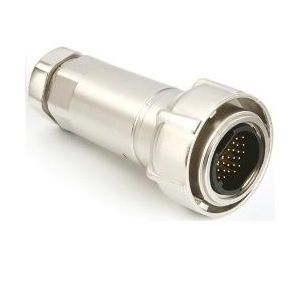

  • Mates With Flex Cable Connectors PXM7011 & PXM7012
