PXM7011/03S/ST/0507 | PXM701103SST0507 | Bulgin 7000 Series

7000 Series Buccaneer Metal 3 Pole Female Flex In-Line Cable Connector
More Information
Complete Electronics Part No. PXM701103SST0507
Manufacturers Part No. PXM7011/03S/ST/0507
Type: Cable Socket
Mounting: Cable
Number of poles 3
Cable Gland Size: 5.0-7.0 mm
Termination: Screw
Male/Female: Female
Housing Construction: Metal
Cable Entry: Straight
Rated Voltage: 600V
Rated Current: 25A
IP Rating: IP66 / 68 / 69K
Description

PXM7011/03S/ST/0507

3 Pole Female Connector

  • Voltage: 600Vac/dc
  • Current: 25 Amps
  • Gender: Female
  • Application: Cable Mount
  • Contacts: Sockets
  • Termination: Screw
  • Temperature range -40 °C/+120 °C

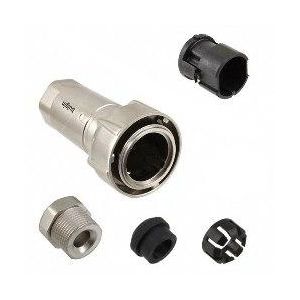

  • Mates With Flex Cable Connector PXM7010 ;
