PXM7011/10P/CR/0911/SN | PXM701110PCR0911SN | Bulgin 7000 Series

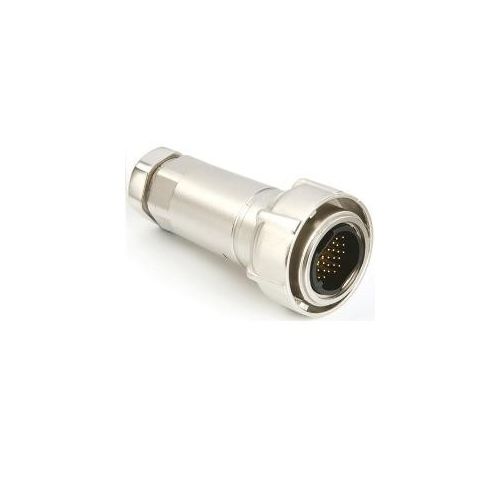

7000 Series Buccaneer Metal 10 Pole Male Flex In-Line Cable Connector
More Information
Complete Electronics Part No. PXM701110PCR0911SN
Manufacturers Part No. PXM7011/10P/CR/0911/SN
Type: Cable Plug
Mounting: Cable
Number of poles 10
Cable Gland Size: 9-11 mm
Termination: Crimp
Male/Female: Male
Housing Construction: Metal
Cable Entry: Straight
Rated Voltage: 600V
Rated Current: 10A
IP Rating: IP66 / 68 / 69K
Description

PXM7011/10P/CR/0911/SN

10 Pole Male Flex In-Line Cable Connector

  • Voltage: 600Vac/dc
  • Current: 10 Amps
  • Gender: Male
  • Application: Cable Mount
  • Contacts: Pins
  • With Braid Termination Accessory
  • Termination: Crimp, excluded, order separately
  • Temperature range -40 °C/+120 °C
  • Mates With Flex Cable Connector PXM7010 ;
