PXP7010/02S/ST/1315 | PXP701002SST1315 | Bulgin 7000 Series
PXP7010/02S/ST/1315 | PXP701002SST1315 | Bulgin 7000 Series

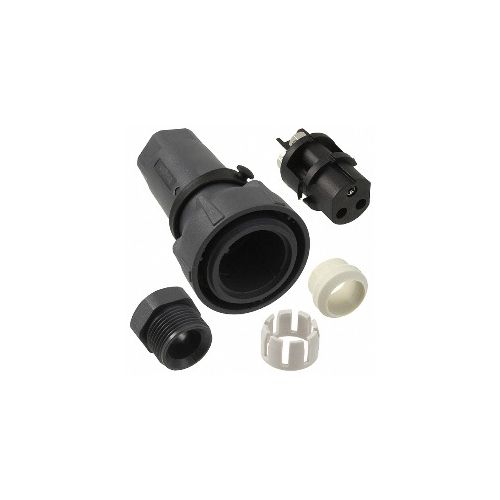

7000 Series Buccaneer Plastic 2 Pole Female Flex Cable Connector
More Information
Complete Electronics Part No.
PXP701002SST1315
Manufacturers Part No.
PXP7010/02S/ST/1315
Type:
Cable Socket
Mounting:
Cable
Number of poles
2
Cable Gland Size:
13-15 mm
Termination:
Screw
Male/Female:
Female
Housing Construction:
Plastic
Rated Voltage:
600V
Rated Current:
25A
IP Rating:
IP66 / 68 / 69K
Description
PXP7010/02S/ST/1315
2 Pole Female Flex Cable Connector
Voltage: 600Vac/dc
Current: 25 Amps
Gender: Female
Application: Cable Mount
Contacts: Sockets
Termination: Screw
Temperature range -40 °C/+120 °C

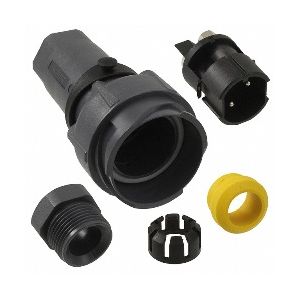

Mates With Flex Cable Connectors PXP7011 & PXP7012
