PXP7010/06S/ST/1113 | PXP701006SST1113 | Bulgin 7000 Series

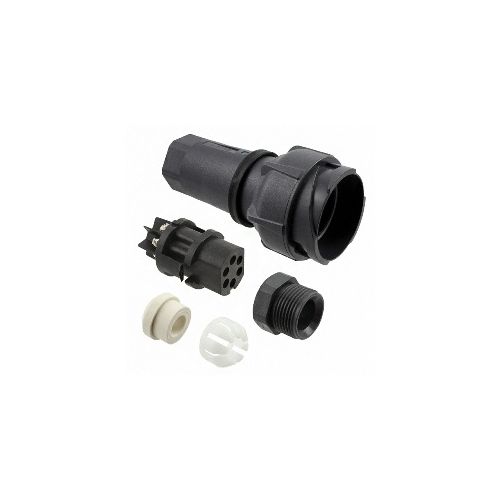

7000 Series Buccaneer Plastic 6 Pole Female Flex Cable Connector
| Complete Electronics Part No. | PXP701006SST1113 |
|---|---|
| Manufacturers Part No. | PXP7010/06S/ST/1113 |
| Type: | Cable Socket |
| Mounting: | Cable |
| Number of poles | 6 |
| Cable Gland Size: | 11-13 mm |
| Termination: | Screw |
| Male/Female: | Female |
| Housing Construction: | Plastic |
| Rated Voltage: | 600V |
| Rated Current: | 10A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP7010/06S/ST/1113
6 Pole Female Flex Cable Connector
- Voltage: 600Vac/dc
- Current: 10 Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Screw
- Temperature range -40 °C/+120 °C

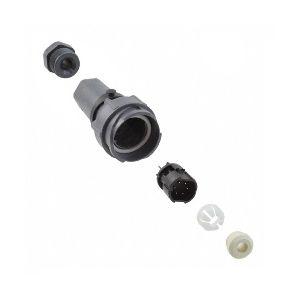

- Mates With Flex Cable Connector PXP7011 & PXP7012
