PXP7011/03S/ST/0911 | PXP701103SST0911 | Bulgin 7000 Series

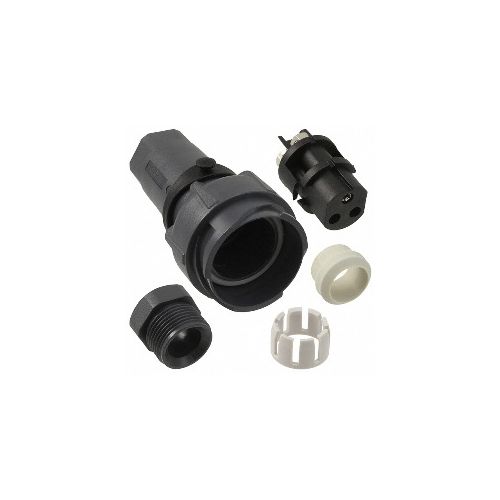

7000 Series Buccaneer Plastic 3 Pole Female Flex In-Line Cable Connector
| Complete Electronics Part No. | PXP701103SST0911 |
|---|---|
| Manufacturers Part No. | PXP7011/03S/ST/0911 |
| Type: | Cable Socket |
| Mounting: | Cable |
| Number of poles | 3 |
| Cable Gland Size: | 9-11 mm |
| Termination: | Screw |
| Male/Female: | Female |
| Housing Construction: | Plastic |
| Rated Voltage: | 600V |
| Rated Current: | 25A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP7011/03S/ST/0911
3 Pole Female Flex In Line Cable Connector
- Voltage: 600Vac/dc
- Current: 25 Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Sockets
- Termination: Screw
- Temperature range -40 °C/+120 °C

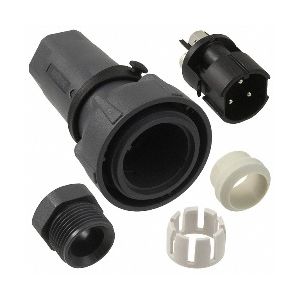

- Mates With Flex Cable Connectors PXP7010;
