PXP7011/10P/CR1315 | PXP701110PCR1315 | Bulgin 7000 Series

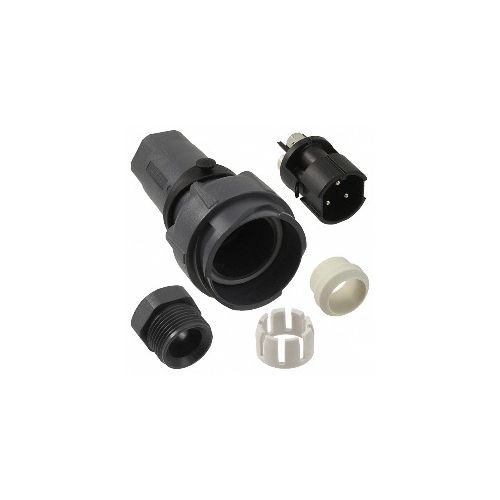

7000 Series Buccaneer Plastic 10 Pole Male Flex In-Line Cable Connector
| Complete Electronics Part No. | PXP701110PCR1315 |
|---|---|
| Manufacturers Part No. | PXP7011/10P/CR/1315 |
| Type: | Cable Plug |
| Mounting: | Cable |
| Number of poles | 10 |
| Cable Gland Size: | 13-15 mm |
| Termination: | Crimp |
| Male/Female: | Male |
| Housing Construction: | Plastic |
| Rated Voltage: | 600V |
| Rated Current: | 10A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXP7011/10P/CR/1315
10 Pole Male Flex Cable Connector
- Voltage: 600Vac/dc
- Current: 10 Amps
- Gender: Male
- Application: Cable Mount
- Contacts: Pins
- Termination: Crimp, excluded, order separately
- Temperature range -40 °C/+120 °C
- Mates With Flex Cable Connectors PXP7010:
