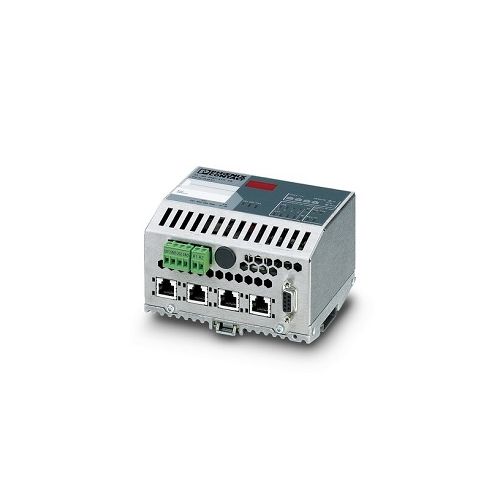

Proxy - FL NP PND-4TX IB-LK | 2985929
Proxy for PROFINET-RT, G4 functionality, INTERBUS proxy for fiber optics with integrated 4-port switch
| Complete Electronics Part No. | 2985929 |
|---|---|
| Manufacturers Part No. | 2985929 |
| Interface Converters etc | Proxy |
Description
Proxy for PROFINET-RT
- INTERBUS proxy for fiber optics with integrated 4-port switch
- G4 Functionality
- Data exchange, diagnostics, and parameterization are via the PROFINET protocol
- LLDP support for topology detection
- PROFINET update rates ≥ 1 ms
- Supply Voltage: 24 V DC
- Supply Voltage range: 18.5...30.2 V DC
- Typical current consumption: 350 mA
- Power Connection method: :Via COMBICON, max. conductor cross section 2.5 mm²
- Ethernet Connection: 4 x RJ45, 10/100 Mbps
- Interbus Connection: F-SMA Connector
- Transmission Speed: 500kKbps / 2Mbps (can be switched)
- 7-segment display/ diagnostics LEDs
- Width: 128mm
- Height: 95mm
- Depth: 69mm
- Ingress protection: IP20
- Din Rail Mounting
- Operating Temperature: -25 °C ... 60 °C
- Weight per Piece (excluding packing): 737.6 g
- Part Number 2985929
- Customs tariff number: 85176200
- Country of origin: DE
