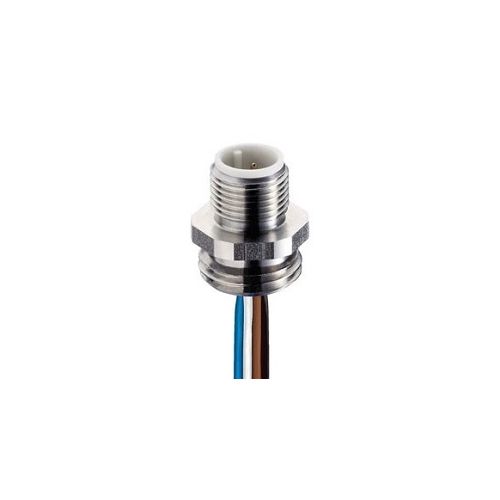

PRSFM 5/0,5 M | 45704 | Connector
Receptacle Connector, Stainless steel housing, M12, 5 Pole
| Complete Electronics Part No. | 45704 |
|---|---|
| Manufacturers Part No. | 45704 |
| Type: | Recptacle Connector |
| Mounting: | Front Mounting |
| Coded Option (Circular) | A |
| Male/Female: | Male M12 |
| Cable Entry: | Straight |
| Number of poles | 5 |
| Rated Voltage: | 63V |
| Rated Current: | 4A at 40°C |
| IP Rating: | IP67 / 69K |
Description
PRSFM 5/0,5 M
Receptacle Connector
- For front mounting
- Stainless steel housing
- M12 male connector
- Assembled stranded wire
- Solder contacts potted with epoxy
- 5 Poles
- A Coding
- Lead 1 x 0.5 mm², 4 x AWG 22
- Chassis side thread M16 x 1.5 (panel nut RSKFM 16)
