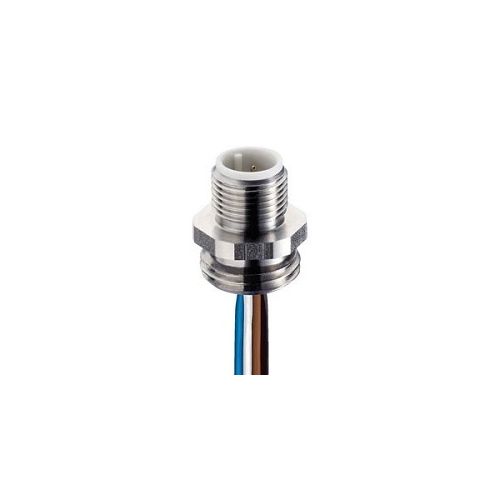

PRSFM 8/0,5 M | 47297 | Connector
Receptacle connector, M12 ,8 Pole, A coding, Potted
| Complete Electronics Part No. | 47297 |
|---|---|
| Manufacturers Part No. | 47297 |
| Type: | Recptacle Connector |
| Mounting: | Front Mounting |
| Coded Option (Circular) | A |
| Male/Female: | Male M12 |
| Cable Entry: | Straight |
| Number of poles | 8 |
| Rated Voltage: | 36V |
| Rated Current: | 2 A at 40°C |
| Cable Length: | 0.5 Metre |
| IP Rating: | IP67 / 69K |
Description
PRSFM 8/0,5 M
M12 male connector, assembled stranded wire, solder contacts potted with epoxy
- 8 poles,
- A coding,
- Lead 8 x 0.22 mm²,
- Chassis side thread M16 x 1.5
- Panel nut RSKFM 16
- Especially designed for use in food processing equipment
