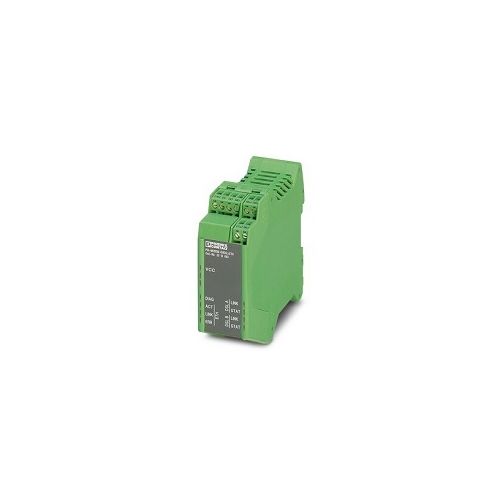

PSI-MODEM-SHDSL/ETH | 2313643
First generation: Unmanaged Ethernet extender for point-to-point connections, line and ring structures, data rates up to 30 Mbps, ***No longer in product range***
| Complete Electronics Part No. | 2313643 |
|---|---|
| Manufacturers Part No. | 2313643 |
Description
PSI-MODEM-SHDSL/ETH
***No longer in product range***
- Unmanaged Ethernet extender
- Data rates up to 30 Mbps
- Diagnostics via USB and LEDs
- 2 SHDSL ports
- 1 LAN port
- Nominal Supply Voltage: 24 V DC ±5 %
- Supply Voltage Range: 18 V DC ... 30 V DC
- Typical Current consumption: < 180 mA (24 V DC)
- COMBICON plug-in screw terminal block
- Status and diagnostic indicators
- 2 Digital Ouputs
- Configuration via Mini-USB type B
- Width: 35mm
- Height: 99mm
- Depth: 114.5mm
- Housing material: PA 6.6-FR
- Colour: Green
- DIN Rail Mounting
- Ingress protection: IP20
- Part Number: 2313656
- Operating Temperature: -20 °C ... 60 °C (Freestanding (40 mm spacing to the right and left)
- Weight per Piece (excluding packing): 259.7 g
- Customs tariff number: 85176200
- Country of origin: DE
