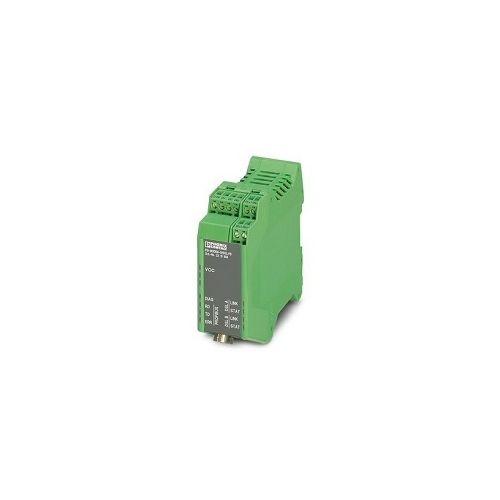

PSI-MODEM-SHDSL/PB | 2313656

Industrial PROFIBUS extender, for point-to-point connections, linear structures, and mixed operation with repeaters and fiber optic converters  ***No longer in product range***

More Information
Complete Electronics Part No. 2313656
Manufacturers Part No. 2313656
Description

PSI-MODEM-SHDSL/SERIAL

***No longer in product range***

  • Industrial PROFIBUS extender
  • PROFIBUS data rates of up to 1.5 Mbps
  • Nominal Supply Voltage: 24 V DC ±5 %
  • Supply Voltage Range: 18 V DC ... 30 V DC
  • Typical Current consumption: < 180 mA (24 V DC)
  • COMBICON plug-in screw terminal block
  • Status and diagnostic indicators
  • 2 Digital Ouputs
  • Configuration via Mini-USB type B
  • Width: 35mm
  • Height: 99mm
  • Depth: 114.5mm
  • Housing material: PA 6.6-FR
  • Colour: Green
  • DIN Rail Mounting
  • Ingress protection: IP20
  • Part Number: 2313656
  • Operating Temperature: -20 °C ... 60 °C (Freestanding (40 mm spacing to the right and left)
  • Weight per Piece (excluding packing): 282.3 g
  • Customs tariff number: 85176200
  • Country of origin: DE
