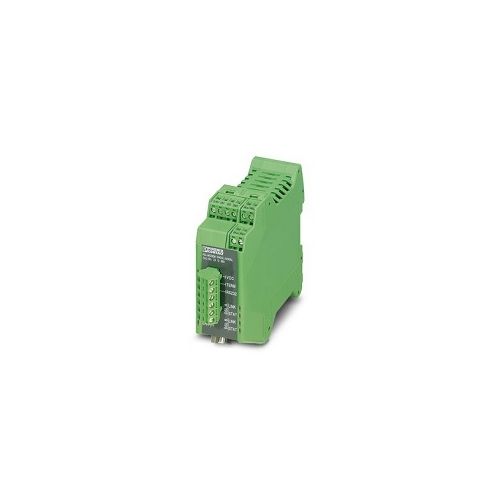

PSI-MODEM-SHDSL/SERIAL | 2313669
Industrial SHDSL extender for serial RS-232/422/485 interfaces, point-to-point and line structures, serial data transmission up to 2000 kbps
| Complete Electronics Part No. | 2313669 |
|---|---|
| Manufacturers Part No. | 2313669 |
Description
PSI-MODEM-SHDSL/SERIAL
- Industrial SHDSL extender
- Nominal Supply Voltage: 24 V DC ±5 %
- Supply Voltage Range: 18 V DC ... 30 V DC
- Typical Current consumption: < 180 mA (24 V DC)
- COMBICON plug-in screw terminal block
- Signal: RS232, RS422, RS485, Modbus
- Status and diagnostic indicators
- 2 Digital Ouputs
- Diagnostics via Mini-USB type B, 5-pos
- Width: 35mm
- Height: 99mm
- Depth: 114.5mm
- Housing material: PA 6.6-FR
- Colour: Green
- DIN Rail Mounting
- Ingress protection: IP20
- Part Number: 2313669
- Operating Temperature: -20 °C ... 60 °C (Freestanding (40 mm spacing to the right and left)
- Weight per Piece (excluding packing): 339.4 g
- Customs tariff number: 85176200
- Country of origin: DE
