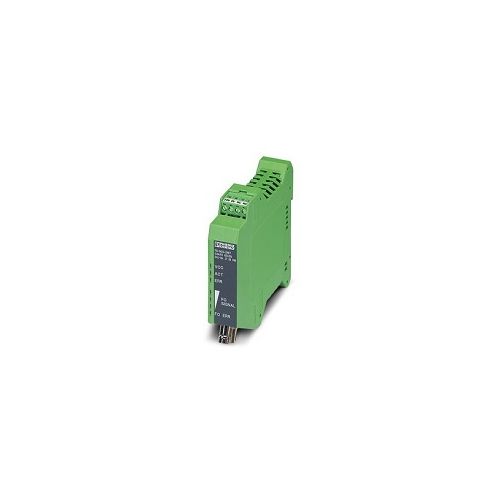

PSI-MOS-DNET CAN/FO 660/EM | 2708067 | Media Module
Media Module with optical diagnostics, for DeviceNet™, CAN, CANopen® up to 800 kbps, extension/redundancy module, interfaces: 1 x FO (F-SMA), 660 nm
| Complete Electronics Part No. | 2708067 |
|---|---|
| Manufacturers Part No. | 2708067 |
| FX (Optical) Connector Type: | F-SMA |
| FX (Optical) Cable Type: | Polymer / PCF Fibre |
| IP Rating: | IP20 |
Description
Media Module, DeviceNet, CAN, CANopen
- Approved for use in zone 2
- Integrated optical diagnostics for continuous monitoring of FO paths
- Interfaces:1 x F-SMA 660 nm
- DIN-rail mountable
- Supply Voltage: 10...30 V DC
- Nominal Supply Voltage: 24 V DC (in acc. with UL)
- Power Connection method: :Pluggable COMBICON screw terminal block through basic module
- Fibre Connector: F-SMA
- Polymer / PCF Fibre
- Typical current consumption: 100 mA (at 24 V DC)
- Width: 22.5mm
- Height: 99mm
- Depth: 114.5mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 104.78 g
- Part Number 2708067
- Customs tariff number: 85176200
- Country of origin: DE
