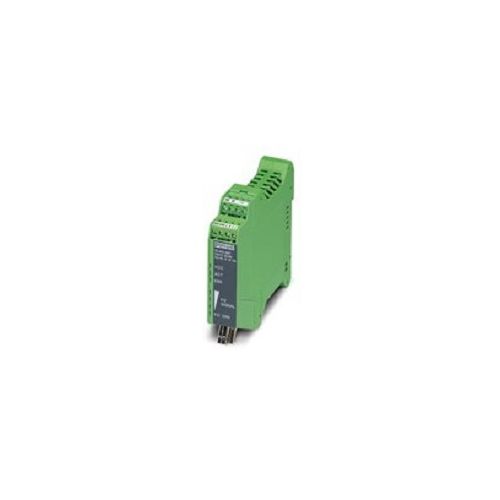

PSI-MOS-DNET CAN/FO 850/BM | 2708083 | Media Module
Media Module with integrated optical diagnostics, for DeviceNet™, CAN, CANopen® up to 800 kbps
| Complete Electronics Part No. | 2708083 |
|---|---|
| Manufacturers Part No. | 2708083 |
| FX (Optical) Connector Type: | B-FOC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| IP Rating: | IP20 |
Description
Media Module with integrated optical diagnostics
- For DeviceNet™, CAN, CANopen®
- Interfaces: 1 x CAN, 1 x alarm, 1 x FO (BFOC), 850 nmAuto negotiation
- Data rates of up to 800 kbps, set via DIP switches
- Approved for use in zone 2
- Store and forward media converter
- DIN-rail mountable
- Supply Voltage: 10...30 V DC
- Nominal Supply Voltage: 24 V DC (in acc. with UL)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Relay Output max switching voltage: 60 V DC / 42V AC
- Fibre Connector: B-FOC
- Fibre Cable: Multi mode
- Typical current consumption: 100 mA (at 24 V DC)
- Width: 22.5mm
- Height: 99mm
- Depth: 114.5mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 198.2 g
- Part Number 2902853
- Customs tariff number: 2708083
- Country of origin: DE
