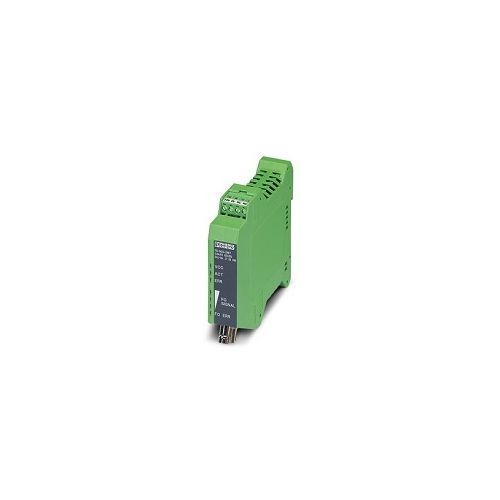

PSI-MOS-DNET CAN/FO 850/EM | 2708096 | Media Converter
Media Converter with optical diagnostics, for DeviceNet™, CAN, CANopen® up to 800 kbps, extension/redundancy module, interfaces: 1 x FO (BFOC), 850 nm
| Complete Electronics Part No. | 2708096 |
|---|---|
| Manufacturers Part No. | 2708096 |
| FX (Optical) Connector Type: | B-FOC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| IP Rating: | IP20 |
Description
Media Converter, DeviceNet, CAN, CANopen
- Approved for use in zone 2
- Integrated optical diagnostics for continuous monitoring of FO paths
- Interfaces: 1 x BFOC 850 nm
- DIN-rail mountable
- Supply Voltage: 10...30 V DC
- Nominal Supply Voltage: 24 V DC (in acc. with UL)
- Power Connection method: :Pluggable COMBICON screw terminal block through basic module
- Fibre Connector: BFOC
- PCF Fibre
- Multimode
- Typical current consumption: 100 mA (at 24 V DC)
- Width: 22.5mm
- Height: 99mm
- Depth: 114.5mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 191.4 g
- Part Number 2708096
- Customs tariff number: 85176200
- Country of origin: DE
