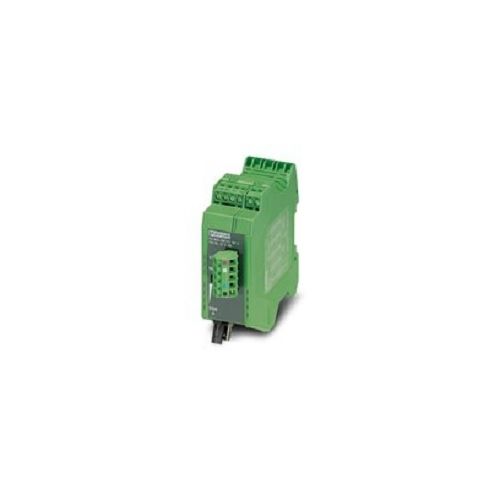

PSI-MOS-DNET/FO 850 E | 2313999 | Media Converter
Media converter with optical diagnostics, for DeviceNet™, CAN, CANopen® 1000 kbps, T-coupler, interfaces: 1 x CAN, 1 x Alarm, 1 x FO (B-FOC), 850 nm
| Complete Electronics Part No. | 2313999 |
|---|---|
| Manufacturers Part No. | 2313999 |
| FX (Optical) Connector Type: | B-FOC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| IP Rating: | IP20 |
Description
Media converter, DeviceNet, CAN, CANopen
- Integrated optical diagnostics for continuous monitoring of FO paths
- Redundant power supply possible by means of optional system power supply unit
- Status LED's: VCC (supply voltage), NET (Mod/Net status), FO signal (fiber optic signal quality), ERR (broken fiber, fiber optic)
- Interfaces:1 x Relay Output, 1 x CAN, 1 x BFOC 850 nm
- DIN-rail mountable
- Supply Voltage: 11...30 V DC
- Relay min switching voltage: 11V DC
- Relay max switching voltage 30 V DC
- Nominal Supply Voltage: 24 V DC (in acc. with UL)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Fibre Connector: BFOC
- PCF Fibre
- Multi Mode
- Typical current consumption: 130 mA (at 24 V DC)
- Width: 35mm
- Height: 102mm
- Depth: 119mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 227 g
- Part Number 2313999
- Customs tariff number: 85176200
- Country of origin: DE
