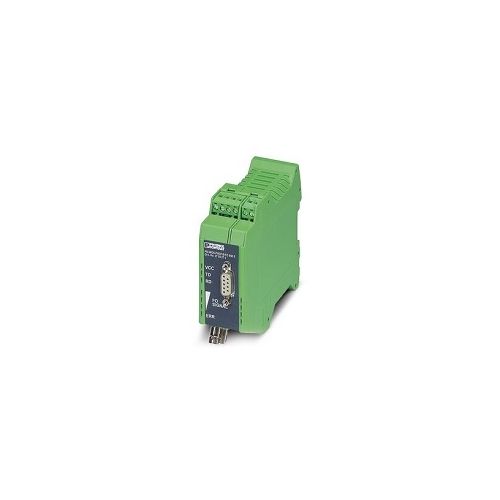

PSI-MOS-PROFIB/FO 850 E | 2708274 | FO Converter
FO converter with integrated optical diagnostics, alarm contact, for PROFIBUS up to 12 Mbps, terminal device with one FO interface (BFOC)
| Complete Electronics Part No. | 2708274 |
|---|---|
| Manufacturers Part No. | 2708274 |
| Phoenix Ethernet Series: | FO Converters Profibus - FO |
| FX (Optical) Connector Type: | ST |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| IP Rating: | IP20 |
Description
FO converter with integrated optical diagnostics
- Supply voltage and data signals routed through the DIN rail connectors
- Integrated optical diagnostics for continuous monitoring of FO paths
- Redundant power supply
- PROFIBUS acc. to IEC 61158, RS-485 2-wire, half duplex, automatic control
- Interfaces: 1 x alarm, 1 x FO BFOC (ST), 850 nm
- D-SUB 9 plug
- DIN-rail mountable
- Supply Voltage: 18...30 V DC
- Nominal Supply Voltage: 24 V DC (in acc. with UL)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Relay Output max switching voltage: 60 V DC / 42V AC
- Fibre Connector: B-FOC (ST)
- Fibre Types: 50/125 µm, 62.5/125 µm, Fiberglass
- Fibre Cable: Multi mode
- Typical current consumption: 120 mA (at 24 V DC)
- Width: 35mm
- Height: 99mm
- Depth: 106mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 250 g
- Part Number 2708274
- Customs tariff number: 2708423
- Country of origin: DE
