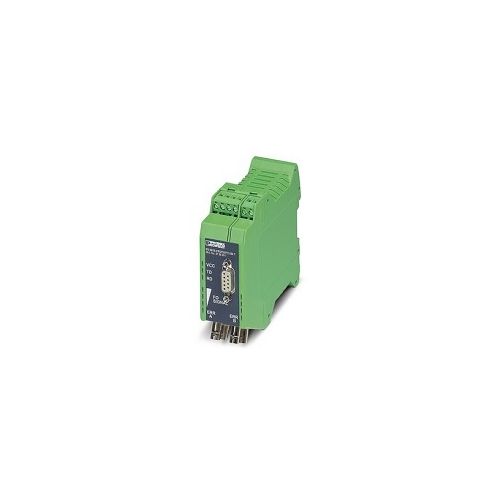

PSI-MOS-PROFIB/FO 850 T | 2708261 | FO Converter
FO converter with integrated optical diagnostics, alarm contact, for PROFIBUS up to 12 Mbps, T-coupler with two FO interfaces (BFOC) Multi Mode
| Complete Electronics Part No. | 2708261 |
|---|---|
| Manufacturers Part No. | 2708261 |
| Phoenix Ethernet Series: | FO Converters Profibus - FO |
| FX (Optical) Connector Type: | ST (B-FOC) x 1 |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| IP Rating: | IP20 |
Description
FO converter with integrated optical diagnostics
- Approved for use in zone 2
- Integrated optical diagnostics for continuous monitoring of FO paths
- Interfaces: 1 x alarm, 1 x BFOC 850 nm
- D-SUB 9 plug
- DIN-rail mountable
- Approved for use in zone 2
- Supply Voltage: 18...30 V DC
- Nominal Supply Voltage: 24 V DC (in acc. with UL)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Relay Output max switching voltage: 60 V DC / 30 V AC / 42V AC
- Fibre Connector: BFOC
- Typical current consumption: 120 mA (at 24 V DC)
- Width: 35mm
- Height: 99mm
- Depth: 106mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Shipbuilding approval in accordance with DNV GL
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 238 g
- Part Number 2708261
- Customs tariff number: 85176200
- Country of origin: DE
