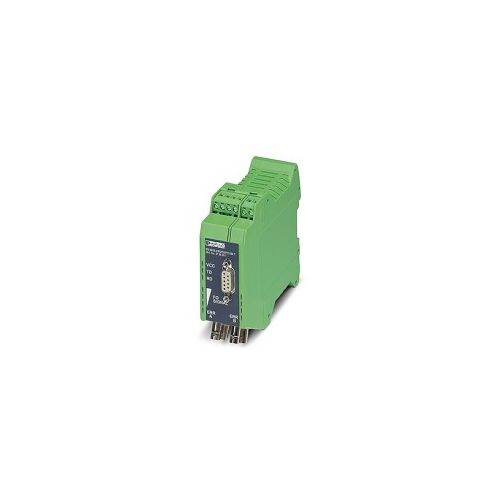

PSI-MOS-RS232/FO 850 T | 2708423 | FO Converter
FO converter with integrated optical diagnostics, alarm contact, for RS-232 interfaces up to 115.2 kbps, T-coupler with two FO interfaces (BFOC)
| Complete Electronics Part No. | 2708423 |
|---|---|
| Manufacturers Part No. | 2708423 |
| Phoenix Ethernet Series: | FO Converters RS232 - FO |
| FX (Optical) Connector Type: | ST |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| IP Rating: | IP20 |
Description
FO converter with integrated optical diagnostics
- Supply voltage and data signals routed through the DIN rail connectors
- Interfaces: 1 x alarm, 2 x FO BFOC (ST), 850 nm
- V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
- D-SUB 9 plug
- DIN-rail mountable
- Supply Voltage: 18...30 V DC
- Nominal Supply Voltage: 24 V DC (in acc. with UL)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Relay Output max switching voltage: 60 V DC / 42V AC
- Fibre Connector: B-FOC (ST)
- Fibre Types: 50/125 µm, 62.5/125 µm, Fiberglass
- Fibre Cable: Multi mode
- Typical current consumption: 120 mA (at 24 V DC)
- Width: 35mm
- Height: 99mm
- Depth: 105mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 200.58 g
- Part Number 2708614
- Customs tariff number: 2708423
- Country of origin: DE
