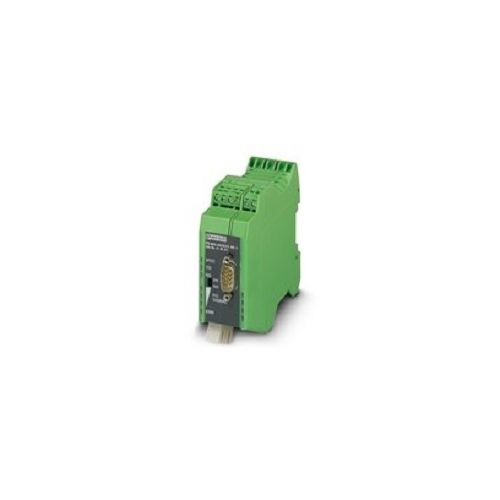

PSI-MOS-RS232/FO1300 E | 2708588 | FO Converter
Fiber optic converter with integrated optical diagnostics, for RS-232 interfaces up to 115.2 kbps, termination device with one fibre optic interface
| Complete Electronics Part No. | 2708588 |
|---|---|
| Manufacturers Part No. | 2708588 |
| Phoenix Ethernet Series: | FO Converters RS232 - FO |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multimode or Single Mode |
| IP Rating: | IP20 |
Description
FO converter (RS232) with integrated optical diagnostics
- Supply voltage and data signals routed through the DIN rail connectors
- Redundant power supply possible by means of optional system power supply unit
- Approved for use in zone 2
- Integrated optical diagnostics for continuous monitoring of FO paths
- Automatic data rate detection for all data rates up to 115.2 kbps
- V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
- Interfaces: 1 x alarm, 1 x FO SC Duplex, 1300 nm
- D-SUB 9 plug
- DIN-rail mountable
- Supply Voltage: 18...32 V DC
- Nominal Supply Voltage: 24 V DC (in acc. with UL)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Relay Output max switching voltage: 60 V DC / 42V AC
- Fibre Connector: SC Duplex
- Fibre Types: 50/125 µm, 62.5/125 µm, Fiberglass
- Fibre Cable: Multi mode or Single mode
- Typical current consumption: 100 mA (at 24 V DC)
- Width: 35mm
- Height: 99mm
- Depth: 105mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 183.78 g
- Part Number 2708588
- Customs tariff number: 85176200
- Country of origin: DE
