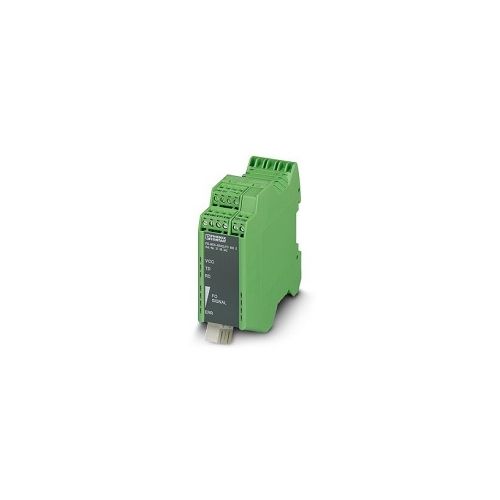

PSI-MOS-RS422/FO1300 E | 2708575 | FO Converter
Fiber optic converter with integrated optical diagnostics, alarm contact, for RS-422/RS-485 4 wire/ INTERBUS up to 2 Mbps, one fiber optic interface (SC duplex), 1300 nm
| Complete Electronics Part No. | 2708575 |
|---|---|
| Manufacturers Part No. | 2708575 |
| Phoenix Ethernet Series: | FO Converters RS422 - FO |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multimode or Single Mode |
| IP Rating: | IP20 |
Description
FO converter with integrated optical diagnostics
- Approved for use in zone 2
- Integrated optical diagnostics for continuous monitoring of FO paths
- Interfaces: 1 x alarm, 1 x SC 1300 nm
- DIN-rail mountable
- Supply Voltage: 18...32 V DC
- Nominal Supply Voltage: 24 V DC (in acc. with UL)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Relay Output max switching voltage: 60 V DC / 42V AC
- Fibre Connector: SC Duplex
- Typical current consumption: 110 mA (at 24 V DC)
- Width: 35mm
- Height: 105mm
- Depth: 103mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Shipbuilding approval in accordance with DNV GL
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 190.68 g
- Part Number 2708575
- Customs tariff number: 85176200
- Country of origin: DE
