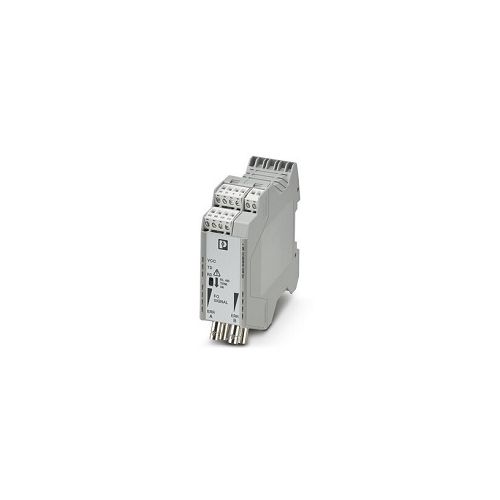

PSI-MOS-RS485W2/FO 850 T | 2708326 | FO Converter
FO converter with alarm contact, for RS-485 2-wire bus systems (SUCONET K, Modbus ...) up to 500 kbps, NRZ coding, 2x FO interfaces (BFOC), 850 nm
| Complete Electronics Part No. | 2708326 |
|---|---|
| Manufacturers Part No. | 2708326 |
| Phoenix Ethernet Series: | FO Converters RS485 - FO |
| FX (Optical) Connector Type: | ST (B-FOC) x 2 |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| IP Rating: | IP20 |
Description
FO converter RS485, integrated optical diagnostics
- Approved for use in zone 2
- Integrated optical diagnostics for continuous monitoring of FO paths
- Interfaces: 1 x alarm, 2 x BFOC 850 nm
- DIN-rail mountable
- Supply Voltage: 18...32 V DC
- Nominal Supply Voltage: 24 V DC (in acc. with UL)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Relay Output max switching voltage: 60 V DC / 30 V AC / 42V AC
- Fibre Connector: BFOC
- Multimode
- For polymer/PCF fiber cable
- Typical current consumption: 120 mA (at 24 V DC)
- Width: 35mm
- Height: 99mm
- Depth: 105mm
- Housing material: PA 6.6-FR
- Colour: Grey
- Ingress protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 210.08 g
- Part Number 2708326
- Customs tariff number: 85176200
- Country of origin: DE
