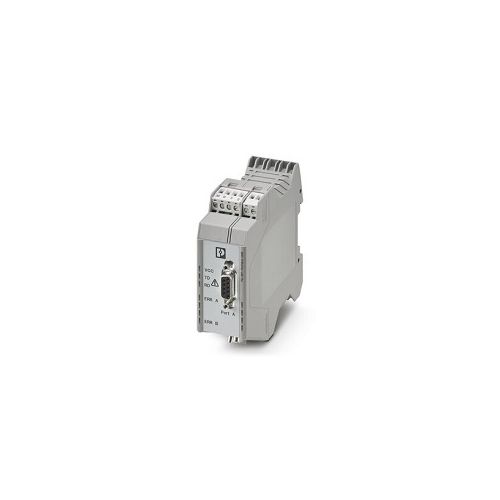

PSI-REP-PROFIBUS/12MB | 2708863 | Repeater
Modular repeater for electrical isolation and range increase for PROFIBUS up to 12 Mbps, 4-way isolation, rail-mountable, supply 24 V DC
| Complete Electronics Part No. | 2708863 |
|---|---|
| Manufacturers Part No. | 2708863 |
Description
PSI-REP-PROFIBUS/12MB
Active Terminaton Resistor
- Transmission speeds of up to 12 Mbps
- Automatic data rate detection or fixed data rate setting
- High-quality 4-way isolation between all interfaces
- Bit oversampling for reliable detection of sporadic disturbances
- Filtering of faulty telegrams based on start delimiter detection
- Can be combined with PSI-MOS FO converters
- Nominal Supply Voltage: 24 V DC
- Supply Voltage Range: 18 V DC ... 30 V DC
- Typical current consumption: 90 mA (at 24 V DC)
- Connection: COMBICON screw terminal block
- Width: 35mm
- Height: 99mm
- Depth: 105mm
- Housing material: PA 6.6-FR
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -20 °C ... 60 °C
- Weight per Piece (excluding packing): 212.4 g
- Part Number 2708863
- Customs tariff number: 85176200
- Country of origin: DE
