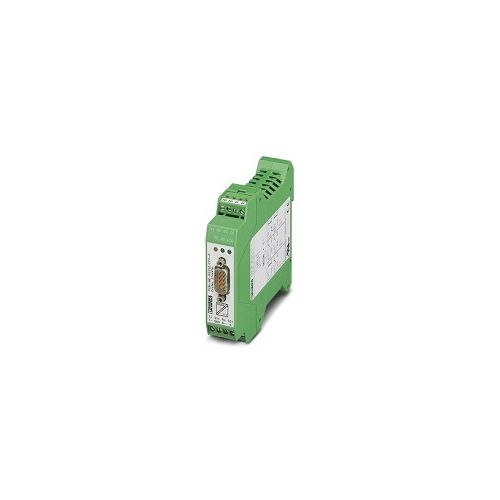

PSM-ME-RS232/TTY-P | 2744458 | Interface converter
Interface converter, for converting RS-232 (V.24) to TTY, with electrical isolation, 2 channels, rail-mountable, High-quality 3-way isolation up to 2 kV
| Complete Electronics Part No. | 2744458 |
|---|---|
| Manufacturers Part No. | 2744458 |
Description
Interface converter - PSM-ME-RS232/TTY-P
- High-quality 3-way isolation up to 2 kV (VCC // RS-232 // RS-232)
- Transmission distances of up to 1000 m in active TTY mode (Shielded twisted pair)
- Integrated surge protection with transient discharge
- Conversion of RS-232 TxD/RxD full duplex data signals to the TTY current loop standard
- Semi-active, active or passive TTY mode, depending on pin assignment
- RS-232 connection via 9-pos. D-SUB and standard RS-232 cable
- Transmission speed of up to 19.2 kbps
- Shipbuilding approval in accordance with DNV GL
- Nominal Supply Voltage: 24 V DC ±20 %
- Typical current consumption: 75 mA (at 24 V DC)
- Pluggable COMBICON screw terminal block
- Width: 22.5mm
- Height: 99mm
- Depth: 118.6mm
- Housing material: PA
- Colour: Green
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: 0 °C ... 55 °C
- Weight per Piece (excluding packing): 179.6 g
- Part Number 2744458
- Customs tariff number: 85176200
- Country of origin: DE
