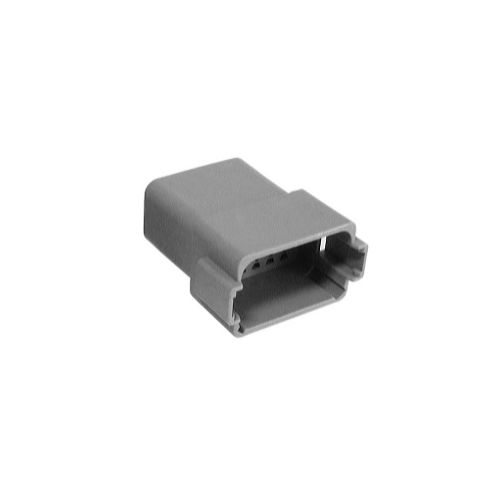

PX0112P12AGY | 12 Pole Rectangular Power Connector
12 Pole Female Rectangular Power Connector. Pin Contcts, 250V, Max current 13A, Body colour Grey
| Complete Electronics Part No. | PX0112P12AGY |
|---|---|
| Manufacturers Part No. | PX0112P12AGY |
| Number of poles | 12 |
| Male/Female: | Female |
Description
Rectangular Power Connector
- Female Connector
- Pin Contacts
- Crimp terminals
- Number of Contacts:12
- Max Current: 13A
- Max Voltage: 250V DC
- Temperature rating: –40ºC to +120ºC
- Body Colour: Grey
- Body Material: Polycarbonate / Polybutylene Terephthalate (PBT)
- Mate with PX0100 Series, as appropriate
- Wedgelocks provided
- Water and dustproof to IP68 when mated with compatible connector
- Shrink Boot Adapter, Protective End Cap, Terminating Resistor, Enhanced Seal Protection available
- Y-Type and Welded flange available
