PX0410/03S/5055 | PX041003S5055 | Bulgin 400 Series | Connector
£2.78
Part Number PX041003S5055 (3 in stock)

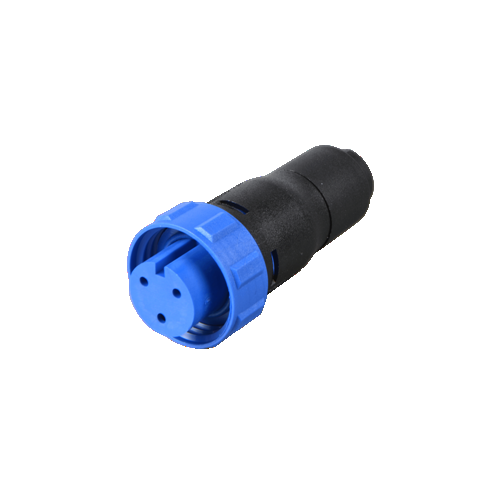

400 Series Buccaneer 3 Pole Female Flex Cable Connector
| Complete Electronics Part No. | PX041003S5055 |
|---|---|
| Manufacturers Part No. | PX0410/03S/5055 |
| Type: | Cable Socket |
| Number of poles | 3 |
| Cable Gland Size: | 5.0-5.5 mm |
| Termination: | Crimp / Solder |
| Male/Female: | Female |
| Rated Voltage: | 250V |
| Rated Current: | 8A |
| IP Rating: | IP68 |
Description
PX041003S5055
400 Series 3 Pole Female Flex Cable Connector
- Voltage: 250Vac/dc
- Current: 8Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Excluded but Crimp/Solder Contacts available separately
- Temperature: -40° to +80°C
- Gland Size: 5.0-5.5mm
- IP Rating: Waterproof & Dustproof to IP68
- Approvals: UL, CSA, VDE & CCC
