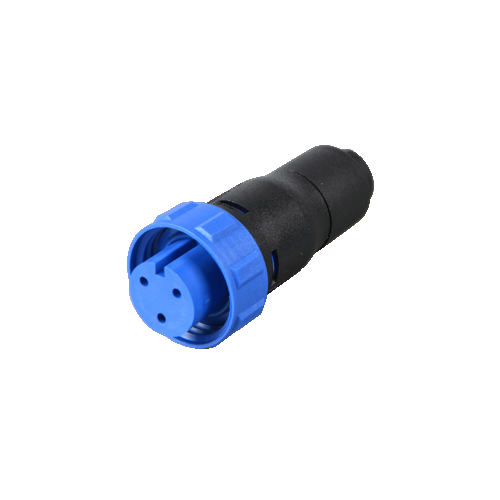

PX0410/03S/5560 | PX041003S5560 | Bulgin 400 Series | Connector
400 Series Buccaneer 3 Pole Female Flex Cable Connector
| Complete Electronics Part No. | PX041003S5560 |
|---|---|
| Manufacturers Part No. | PX0410/03S/5560 |
| Type: | Cable Socket |
| Number of poles | 3 |
| Cable Gland Size: | 5.5-6.0 mm |
| Termination: | Crimp / Solder |
| Male/Female: | Female |
| Rated Voltage: | 250V |
| Rated Current: | 8A |
| IP Rating: | IP68 |
Description
PX0410/03S/5560
3 Pole Female Flex Cable Connector
- Voltage: 250Vac/dc
- Current: 8 Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Excluded but Crimp/Solder Contacts available separately
- Temperature range -40 °C/+80 °C
