PX0410/10S/5560 | PX041010S5560 | Bulgin 400 Series | Connector

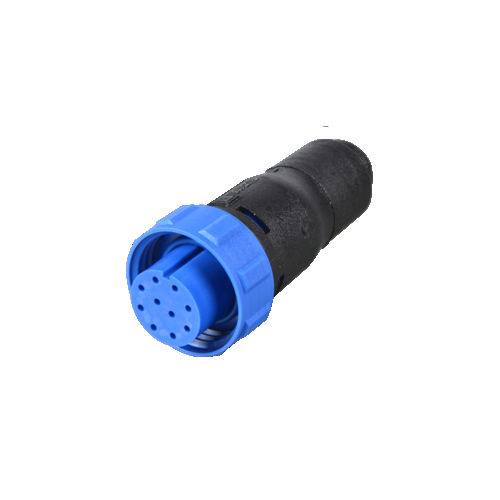

400 Series Buccaneer 10 Pole Female Flex Cable Connector
| Complete Electronics Part No. | PX041010S5560 |
|---|---|
| Manufacturers Part No. | PX0410/10S/5560 |
| Type: | Cable Socket |
| Number of poles | 10 |
| Cable Gland Size: | 5.5-6.0 mm |
| Termination: | Crimp / Solder |
| Male/Female: | Female |
| Rated Voltage: | 50V |
| Rated Current: | 1A |
| IP Rating: | IP68 |
Description
PX041010S5560
400 Series 10 Pole Female Flex Cable Connector
- Voltage: 50Vac/dc
- Current: 1Amps
- Gender: Female
- Application: Cable Mount
- Contacts: Excluded but Crimp/Solder Contacts available separately
- Temperature: -40° to +80°C
- Gland Size: 5.5-6.0mm
- IP Rating: Waterproof & Dustproof to IP68
- Approvals: UL, CSA, VDE & CCC
