PX0707/S/12 | PX0707S12 | Connector

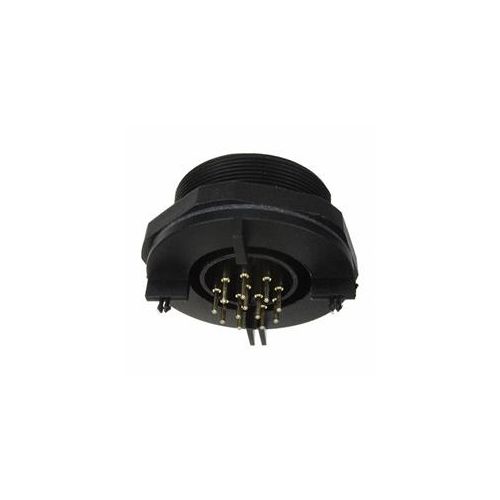

Standard Series Buccaneer 12 Pole Female Rear Panel Mount Connector
More Information
Complete Electronics Part No. PX0707S12
Manufacturers Part No. PX0707/S/12
Type: Panel Mount Connector
Mounting: Rear Mounting
Number of poles 12
Termination: PCB Mount
Male/Female: Female
Rated Voltage: 50V
Rated Current: 5A
IP Rating: IP68
Description

PX0707S12

Standard Series Buccaneer 12 Pole Female Rear Panel Mount Connector

  • Mates with Flex Cable Connector
  • Voltage: 50Vac/dc
  • Current: 5Amp
  • Application: Panel Mount (Rear)
  • Contacts: Sockets
  • Termination: PCB
  • Temperature: -20 °C/+70 °C
  • IP Rating: Water and Dust to IP68
  • Approvals: UL, CSA & VDE
