PX0707/S/25 | PX0707S25 | Connector

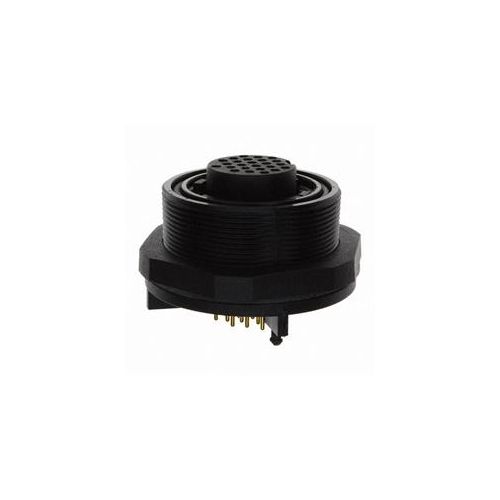

Standard Series Buccaneer 25 Pole Female Rear Panel Mount Connector
| Complete Electronics Part No. | PX0707S25 |
|---|---|
| Manufacturers Part No. | PX0707/S/25 |
| Type: | Panel Mount Connector |
| Mounting: | Rear Mounting |
| Number of poles | 25 |
| Termination: | PCB Mount |
| Male/Female: | Female |
| Rated Voltage: | 50V |
| Rated Current: | 1A |
| IP Rating: | IP68 |
Description
PX0707S25
Standard Series Buccaneer 25 Pole Female Rear Panel Mount Connector
- Mates with Flex Cable Connector
- Voltage: 50Vac/dc
- Current: 1Amp
- Application: Panel Mount (Rear)
- Contacts: Sockets
- Termination: PCB
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
