PX0708/S/12 | PX0708S12 | Connector

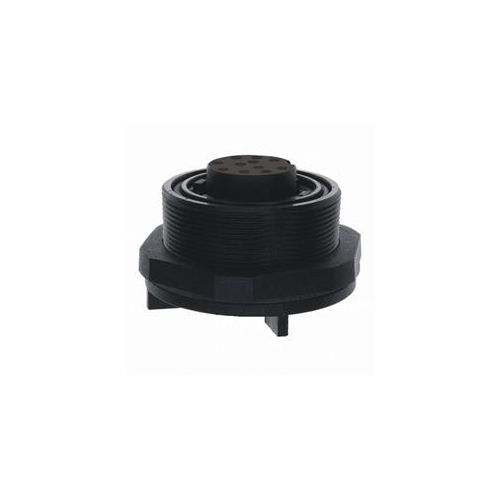

Standard Series Buccaneer 12 Pole Female Rear Panel Mount Connector
| Complete Electronics Part No. | PX0708S12 |
|---|---|
| Manufacturers Part No. | PX0708/S/12 |
| Type: | Panel Mount Connector |
| Mounting: | Rear Mounting |
| Number of poles | 12 |
| Termination: | Crimp / Solder |
| Male/Female: | Female |
| Rated Voltage: | 50V |
| Rated Current: | 5A |
| IP Rating: | IP68 |
Description
PX0708S12
Standard Series Buccaneer 12 Pole Female Rear Panel Mount Connector
- Mates with Flex Cable Connector
- Voltage: 50Vac/dc
- Current: 5Amp
- Application: Panel Mount (Rear)
- Contacts: Sockets (order separately)
- Termination: Crimp/Solder
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
