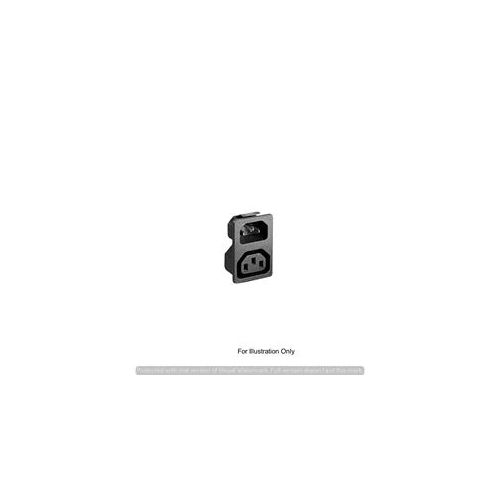

PX0716/48 | PX071648 | Bulgin IEC Connector
IEC Connector, Female , 1 Outlet, 1 Inlet, Snap Fit to panel, Panel Size 1.2mm, Termination: 4.8mm tab, Black
| Complete Electronics Part No. | PX071648 |
|---|---|
| Manufacturers Part No. | PX0716/48 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet / Outlet |
| IEC Class | Sheet C14 Class I & Sheet F Class I |
| Number of Inlets / Outlets | 1 |
| Mounting: | Snap Fit Fixing |
| Module Arrangement | Vertical |
| Number of poles | 3 |
| Male/Female: | Male and Female |
| Termination: | 4.8mm Spade Terminal |
| Rated Voltage: | 250V |
| Rated Current: | 10A |
| Panel Thickness: | 1.2mm |
| Connector Colour: | Black |
Description
PX071648
Bulgin IEC Connectorr
- Female / Male
- Snap Fit to panel
- No of Outlets: 1
- 1 Inlet
- Panel Size: 1.2mm
- Termination: 4.8mm tab
- EN60320-2-2 & EN60320-1
- Sheet F Class I & Sheet C14 Class I
- Colour: Black
- Rated Voltage:250V ac
- Rated Current 10A
