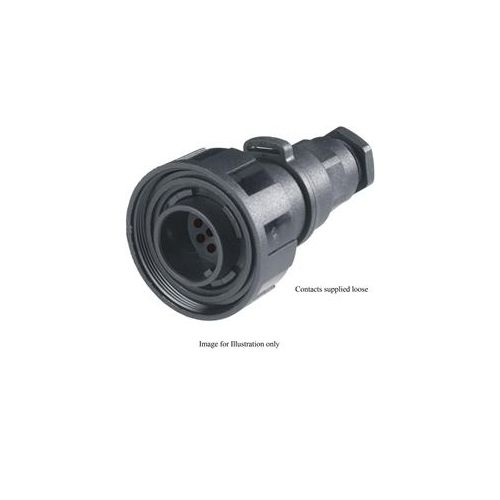

PX0728/P/07 | PX0728P07 | Connector
Standard Series Buccaneer 9 Pole Male Flex Cable Connector with 7-9mm cable gland
| Complete Electronics Part No. | PX0728P07 |
|---|---|
| Manufacturers Part No. | PX0728/P/07 |
| Type: | Cable Plug |
| Mounting: | Cable |
| Number of poles | 9 |
| Termination: | Crimp |
| Male/Female: | Male |
| Rated Voltage: | 150V |
| Rated Current: | 5A |
| IP Rating: | IP68 |
Description
PX0728P07
Standard Series Buccaneer 9 Pole Male Flex Cable Connector
- Standard Series Buccaneer
- With 7-9mm cable gland
- Mates with In-Line Flex or Panel Mount Versions
- Voltage: 150Vac/dc
- Current: 5Amps
- Application: Cable Mount
- Contacts: Pin
- Termination: Crimp
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
