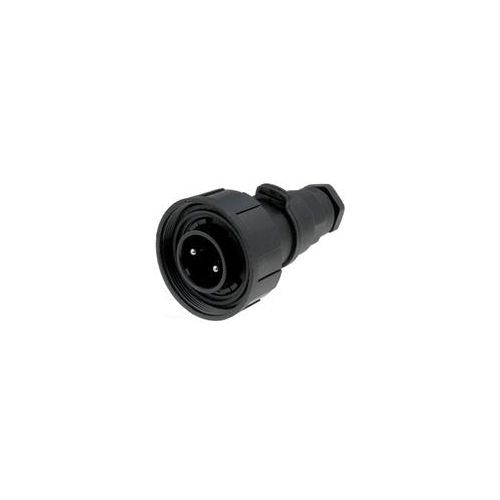

PX0736/P/05 | PX0736P05 | Connector
Standard Series Buccaneer 2 Pole Male Flex Cable Connector with 5-7mm cable gland
| Complete Electronics Part No. | PX0736P05 |
|---|---|
| Manufacturers Part No. | PX0736/P/05 |
| Type: | Cable Plug |
| Mounting: | Cable |
| Number of poles | 2 |
| Termination: | Screw |
| Male/Female: | Male |
| Rated Voltage: | 277V |
| Rated Current: | 12A |
| IP Rating: | IP68 |
Description
PX0736P05
Pole Male Flex Cable Connector
- Standard Series Buccaneer 2
- With 5-7mm cable gland</h2>
- Mates with In-Line Flex or Panel Mount Versions
- Voltage: 277Vac/dc
- Current: 12Amps
- Application: Cable Mount
- Contacts: Pins
- Termination: Screw
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
