PX0767/S | PX0767S | Connector

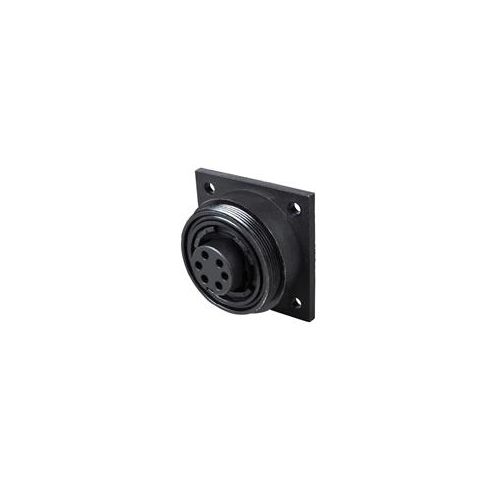

Standard Series Buccaneer 6 Pole Female Low Profile Flange Mount Connector
| Complete Electronics Part No. | PX0767S |
|---|---|
| Manufacturers Part No. | PX0767/S |
| Type: | Panel Mount Connector |
| Mounting: | Flange Fixing |
| Number of poles | 6 |
| Termination: | Screw |
| Male/Female: | Female |
| Rated Voltage: | 277V |
| Rated Current: | 5A |
| IP Rating: | IP68 |
Description
PX0767S
Standard Series Buccaneer 6 Pole Female Low Profile Flange Mount Connector
- Mates with Flex Cable Connector
- Voltage: 277Vac/dc
- Current: 5Amps
- Application: Bulkhead Mount
- Contacts: Sockets
- Termination: Screw
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
