PX0822/S | PX0822S | Connector

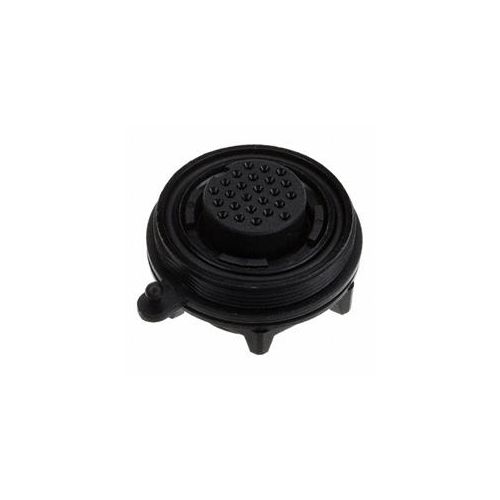

Standard Series Buccaneer 25 Pole Female Front Panel Mount Connector
| Complete Electronics Part No. | PX0822S |
|---|---|
| Manufacturers Part No. | PX0822/S |
| Type: | Panel Mount Connector |
| Mounting: | Front Mounting |
| Number of poles | 25 |
| Termination: | Crimp / Solder |
| Male/Female: | Female |
| Rated Voltage: | 50V |
| Rated Current: | 1A |
| IP Rating: | IP68 |
Description
PX0822S
Standard Series Buccaneer 25 Pole Female Front Panel Mount Connector
- Mates with Flex Cable Connector
- Voltage: 50Vac/dc
- Current: 1Amps
- Application: Panel Mount (Front)
- Contacts: Sockets
- Termination: Crimp/Solder (order separately)
- Temperature: -20 °C/+70 °C
- IP Rating: Water and Dust to IP68
- Approvals: UL, CSA & VDE
