PX0911/03/P | PX091103P | Bulgin 900 Series Buccaneer | Connector

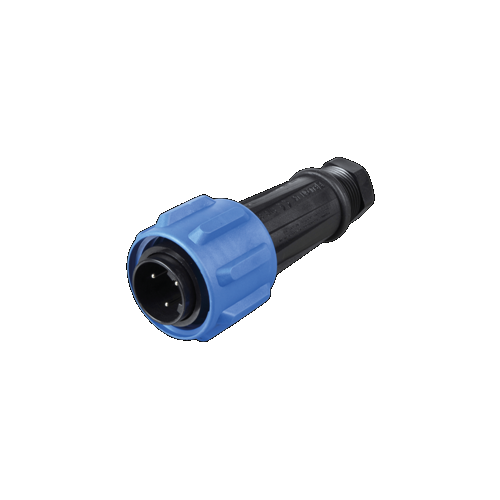

900 Series Buccaneer 3 Pole Male Flex Cable Connector
| Complete Electronics Part No. | PX091103P |
|---|---|
| Manufacturers Part No. | PX0911/03/P |
| Type: | Cable Plug |
| Mounting: | Cable |
| Number of poles | 3 |
| Termination: | Screw |
| Male/Female: | Male |
| Cable Entry: | Straight |
| Cable Diameter | 13-15mm, 7-13mm with additional gland pack |
| Rated Voltage: | 600V |
| Rated Current: | 32A |
| IP Rating: | IP68 |
Description
PX0911/03/P
900 Series Buccaneer 3 Pole Male Flex Cable Connector
- Voltage: 600Vac/dc
- Current: 32Amps
- Gender: Male A
- Contacts: Pins
- Termination: Screw
- Mates with PX0911 and PXA911 connectors
- Temperature range -40 °C/+85 °C
- 13-15mm cable dia. as standard, 7-13mm with additional gland pack
