PX0921/03/S | PX092103S | Bulgin 900 Series Buccaneer | Connector
£8.10
Part Number PX092103S (5 in stock)

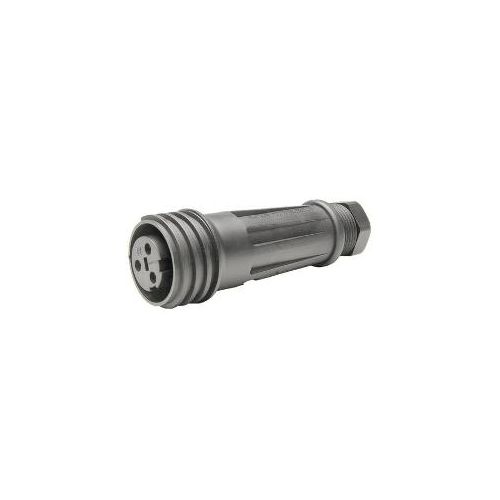

900 Series Buccaneer 3 Pole Female Flex In-Line Cable Connector
| Complete Electronics Part No. | PX092103S |
|---|---|
| Manufacturers Part No. | PX0921/03/S |
| Type: | Cable Socket |
| Number of poles | 3 |
| Termination: | Screw |
| Male/Female: | Female |
| Cable Entry: | Straight |
| Cable Diameter | 13-15mm, 7-13mm with additional gland pack |
| Rated Voltage: | 600V |
| Rated Current: | 32A |
| IP Rating: | IP68 |
Description
PX0921/03/S
900 Series Buccaneer 3 Pole Female Flex In Line Connector
- Voltage: 600Vac/dc
- Current: 32Amps
- Gender: Female A
- Contacts: Sockets
- Termination: Screw
- Mates with PX0911 and PXA911 connectors
- Temperature range -40 °C/+85 °C
- 13-15mm cable dia. as standard, 7-13mm with additional gland pack
