PXA911/10/P | PXA91110P | Connector

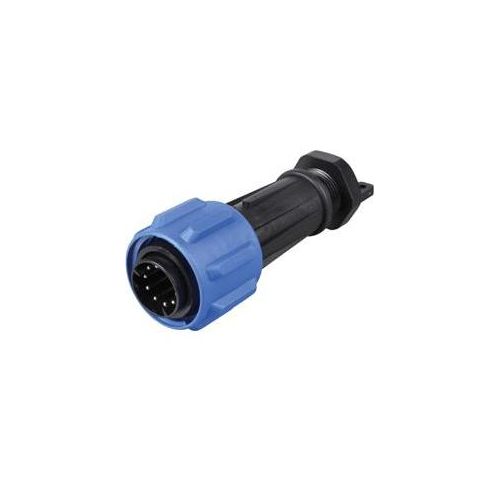

900 Series Buccaneer 10 Pole Male Flex Cable Connector
| Complete Electronics Part No. | PXA91110P |
|---|---|
| Manufacturers Part No. | PXA911/10/P |
| Type: | Cable Plug |
| Number of poles | 10 |
| Termination: | Screw |
| Male/Female: | Male |
| Cable Entry: | Straight |
| Cable Diameter | 20-22mm, 14-20mm with additional gland pack |
| Rated Voltage: | 250V |
| Rated Current: | 10A |
| IP Rating: | IP68 |
Description
PXA921/10/P
900 Series Buccaneer 10 Pole Male Flex Cable Connector
- Voltage: 250Vac/dc
- Current: 10Amps
- Gender: Male
- Contacts: Pins
- Termination: Screw
- Mates with PX0911 and PXA911 connectors
- Temperature range -40 °C/+85 °C
- 20-22mm cable dia. as standard, 14-20mm with additional gland pack
