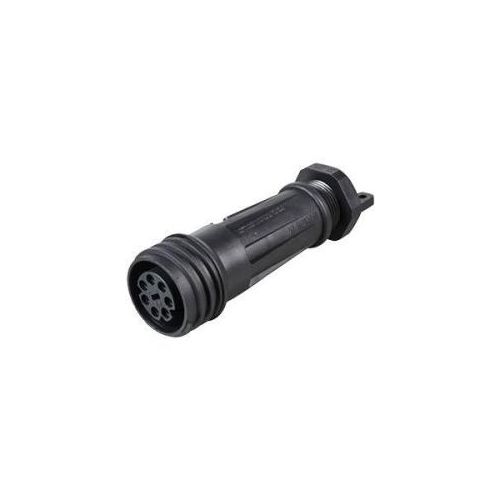

PXA921/07/S | PXA92107S | Connector
900 Series Buccaneer 7 Pole Female Flex In-Line Cable Connector
| Complete Electronics Part No. | PXA92107S |
|---|---|
| Manufacturers Part No. | PXA921/07/S |
| Type: | Cable Plug |
| Number of poles | 7 |
| Termination: | Screw |
| Male/Female: | Male |
| Cable Entry: | Straight |
| Cable Diameter | 20-22mm, 14-20mm with additional gland pack |
| Rated Voltage: | 250V |
| Rated Current: | 10A |
| IP Rating: | IP68 |
Description
PXA921/07/S
900 Series Buccaneer 7 Pole Male Flex In Line Connector
- Voltage: 250Vac/dc
- Current: 10Amps
- Gender: Female A
- Contacts: Sockets
- Termination: Screw
- Mates with PX0911 and PXA911 connectors
- Temperature range -40 °C/+85 °C
- 20-22mm cable dia. as standard, 14-20mm with additional gland pack
