PXA921/10/S | PXA92110S | Connector
£15.32
Part Number PXA92110S (10 in stock)

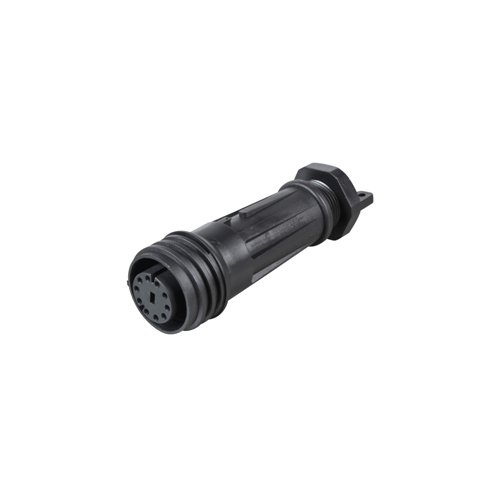

900 Series Buccaneer 10 Pole Female Flex In-Line Cable Connector
| Complete Electronics Part No. | PXA92110S |
|---|---|
| Manufacturers Part No. | PXA921/10/S |
| Type: | Cable Socket |
| Number of poles | 10 |
| Termination: | Screw |
| Male/Female: | Female |
| Cable Entry: | Straight |
| Cable Diameter | 20-22mm, 14-20mm with additional gland pack |
| Rated Voltage: | 250V |
| Rated Current: | 10A |
| IP Rating: | IP68 |
Description
PXA921/10/S
900 Series Buccaneer 10 Pole Female Flex In Line Connector
- Voltage: 250Vac/dc
- Current: 10Amps
- Gender: Female
- Contacts: Sockets
- Termination: Screw
- Mates with PX0911 and PXA911 connectors
- Temperature range -40 °C/+85 °C
- 20-22mm cable dia. as standard, 14-20mm with additional gland pack
