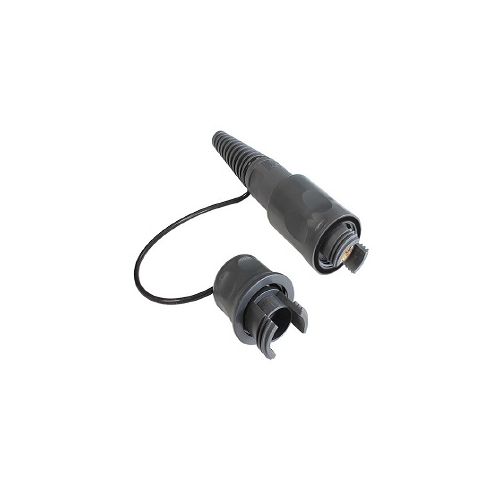

PXEB5200MM5055 | 2 channel Plug | 5000 Series
Non-terminated Connector for 2-Channel 5 - 5.5mm Diameter Cable, Compatible with OM1 & OM3, Mates with Plug, Jam Nut, & Flange Mount Connectors
| Complete Electronics Part No. | PXEB5200MM5055 |
|---|---|
| Manufacturers Part No. | PXEB5200MM5055 |
| Type: | Cable Plug |
| Mounting: | Cable |
| Number of poles | 2 Channels |
| Cable Diameter | 5 - 5.5mm |
Description
PXEB5200MM5055
5000 Series Connector - Expanded Beam
2 Channel Plug Connector
Non-terminated Connector for a 2-Channel Cable
Designed to MIL-DTL-83526D
Secure, proven locking system
5mm - 5.5mm Cable Acceptance
Compatible with multimode OM1 & OM3 fiber cables
Dust Cap, Lanyard, & Ferrules included
Mates with Plug, Jam Nut, & Flange Mount Connectors (hermaphroditic)
Operating Temperature Range; -50⁰C to +80⁰C
UL94-V0 rated
UV stable
Halogen Free
Suitable for long term outdoor use
Ingress protection: IP68
Part Number: PXEB5200MM5055
