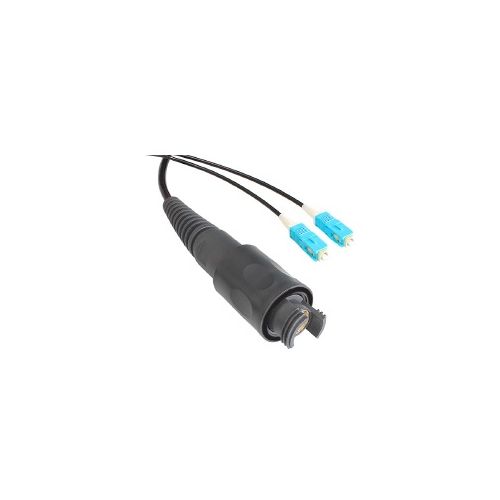

PXEB5203C015 | Plug to SC Cable Assembly | 5000 Series
Terminated Plug Connector with a 2-Channel Outdoor Tactical Cable that breaks out in 2 independent cables with SC Connectors OM1 Fibre, Length 15m
| Complete Electronics Part No. | PXEB5203C015 |
|---|---|
| Manufacturers Part No. | PXEB5203C015 |
| Type: | Plug to SC Connector |
| Cordset Type: | Double Ended |
| Number of poles | 2 Channels |
| Cable Length: | 15 Metres |
Description
PXEB5203C015
Plug to SC Connector Cable Assembly
2 Channel cable assembly
Cable Length: 15 metres
Multimode OM1 fiber cable
Designed to MIL-DTL-83526D
Secure, proven locking system
Dust Cap & Lanyard included for each connector
Mates with Plug, Jam Nut, & Flange mount Connectors (hermaphroditic)
Operating Temperature Range:-50⁰C to +80⁰C
UL94-V0 rated
UV stable
Halogen Free
Rohs Compliant
Suitable for long term outdoor use
Ingress protection: IP68
Part Number: PXEB5203C015
