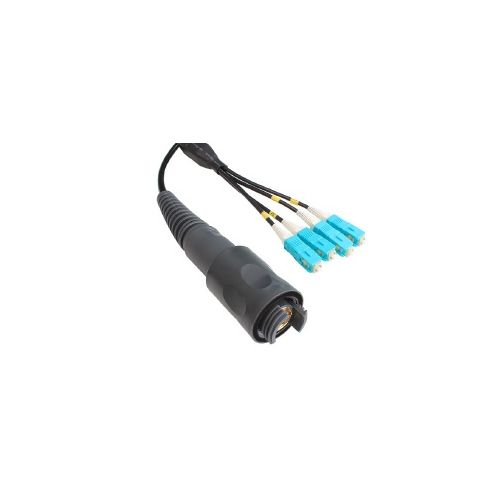

PXEB5403B300 | Plug to SC Cable Assembly | 5000 Series
Terminated Plug Connector with a 4-Channel Outdoor Tactical Cable that breaks out in 4 independent cables with SC Connectors OM1 Fibre, Length 300m
| Complete Electronics Part No. | PXEB5403B300 |
|---|---|
| Manufacturers Part No. | PXEB5403B300 |
| Type: | Plug to SC Connector |
| Cordset Type: | Double Ended |
| Number of poles | 4 Channels |
| Cable Length: | 300 Metres |
Description
PXEB5403B300
Plug to SC Connector Cable Assembly
4 Channel cable assembly
Cable Length: 300metres
Multimode OM1 fiber cable
Designed to MIL-DTL-83526D
Secure, proven locking system
Dust Cap & Lanyard included for each connector
Mates with Plug, Jam Nut, & Flange mount Connectors (hermaphroditic)
Operating Temperature Range: -5 0⁰C to +80⁰C
UL94-V0 rated
UV stable
Halogen Free
Rohs Compliant
Suitable for long term outdoor use
Ingress protection: IP68
Part Number: PXEB5403B300
