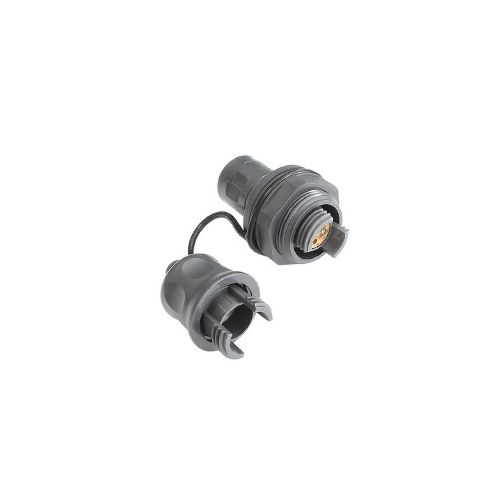

PXEB5410MM4550 | Jam Nut Bulkhead Connector | 5000 Series
Non-terminated Connector for 4-Channel cable, Mates with Plug Connectors, Dust Cap, Lanyard, & Ferrules (termini) included
| Complete Electronics Part No. | PXEB5410MM4550 |
|---|---|
| Manufacturers Part No. | PXEB5410MM4550 |
| Type: | Panel Mount Connector |
| Mounting: | Bulkhead Mounting |
| Number of poles | 4 Channels |
| Cable Diameter | 4.5 - 5mm |
Description
PXEB5410MM4550
4 Channel Jam Nut Bulkhead Connector
With cable retention
Non-terminated Connector for 4-Channel cable
Designed to MIL-DTL-83526D
Secure, proven locking system
Cable Acceptance: 4.5mm to 5.0mm
Compatible with multimode OM1 & OM3 cables
Dust Cap, Lanyard, & Ferrules (termini) included
Mates with Plug Connectors (hermaphroditic)
Operating Temperature Range:-50⁰C to +80⁰C
Maximum Panel Thickness 4.7mm
UL94-V0 rated
UV stable
Halogen Free
Suitable for long term outdoor use
Ingress protection: IP68
Part Number: PXEB5410MM4550
