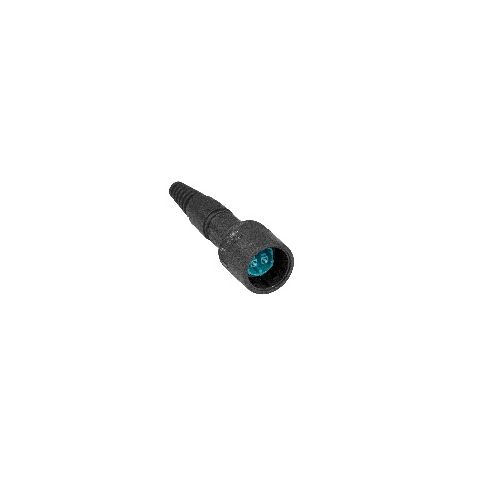

PXF6050A Fibre Optic Connector
PXF6050A OM3 Multi Mode Fibre Optic Connector - no cable supplied, suitable for LC type Connectors
| Complete Electronics Part No. | PXF6050A |
|---|---|
| Manufacturers Part No. | PXF6050A |
Description
PXF6050A
Flex Fiber Optic Connector Without Cable
- OM3 Multimode Cable
- Accommodates industry standard LC interfaces as per IEC 61754-20
- Diameter Over Coupling Ring: 32mm
- Operating Temperature: -25 to 70°C
- Application: Cable Mount
- Max Insetion Loss: 0.2 dB
- Protection Rating: IP68
- 30 degree locking mechanism
Cable Lengths Available
- AA = 1 (1M on chassis version only PXF6052)
- AA = 5 metres
- AB = 10 metres
- AC = 15 metres
- AD = 25 metres
- AE = 50 metres
- AF = 100 metres
- AG = 150 metres
- AH = 200 metres
- AJ = 300 metres
Part Number Examples
- PXF6050A = Flex connector, for OM3 (Multimode) no cable supplied
- PXF6050AAA = Flex connector, OM3 multimode cable, 5 metre length to LC type connector
- PXF6052BAA = Panel mount connector, OM1 multi mode cable, 1 metre length to LC type connector
