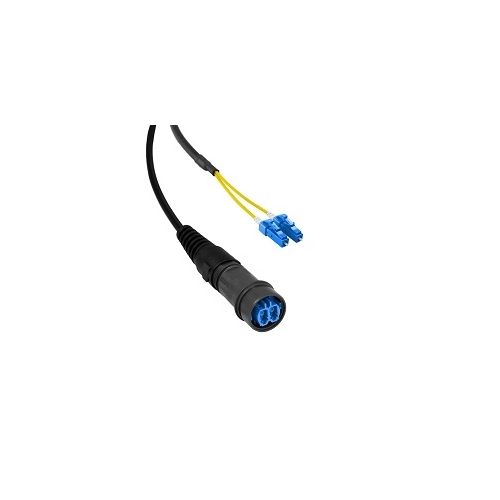

PXF6051Cxx Fibre Optic Connector with Cable

PXF6051Cxx OS1 Single Mode Fibre Optic Connector with cable - cable length defined by xx in the part number (see main description) with LC type Connectors
More Information
Complete Electronics Part No. PXF6051Cxx
Manufacturers Part No. PXF6051Cxx
Description

PXF6051Cxx

Flex Fiber Optic Connector With Cable

  • OS1 Single Mode Cable
  • Accommodates industry standard LC interfaces as per IEC 61754-20
  • Diameter Over Coupling Ring: 32mm
  • Operating Temperature: -25 to 70°C
  • Application: Cable Mount
  • Max Insetion Loss: 0.2 dB
  • Protection Rating: IP68
  • 30 degree locking mechanism

Cable Lengths Available

  • If Blank = No Cable Supplied
  • AA = 1 (1M on chassis version only PXF6052)
  • AA = 5 metres
  • AB = 10 metres
  • AC = 15 metres
  • AD = 25 metres
  • AE = 50 metres
  • AF = 100 metres
  • AG = 150 metres
  • AH = 200 metres
  • AJ = 300 metres

Part Number Examples

  • PXF6050A = Flex connector, for OM3 (Multimode) no cable supplied
  • PXF6050AAA = Flex connector, OM3 multimode cable, 5 metre length to LC type connector
  • PXF6052BAA = Panel mount connector, OM1 multi mode cable, 1 metre length to LC type connector

         Fiber Assignment
